SOLAR TUBE TILE - TT- FLAT TILE
Design

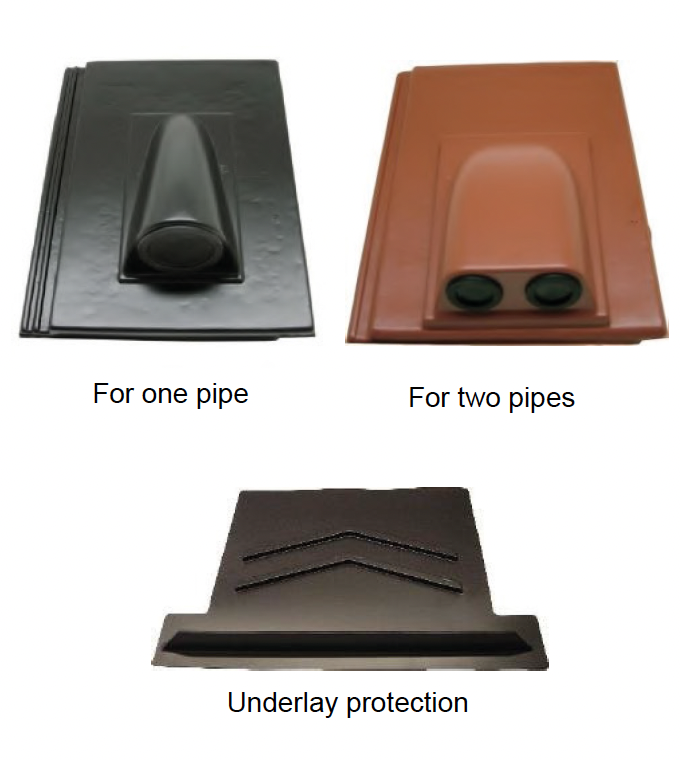

Available as:
TT-1 – with rubber sleeve, water stop and 2 drain holes. Max. Ø 46 mm pipe. For slates, steel and corrugated sheets.
TT-2 – with rubber sleeve Max. Ø 46 mm pipe. For clay and concrete.
TT-3 – with water stop and 2 drain holes. Max. Ø 90 mm pipe. For slates, steel and corrugated sheets.
TT-4 – cast in one piece. Max. Ø 90 mm pipe. For clay and concrete.
TT-5 – with rubber sleeves, water stop and 2 drain holes. 2 pipes max. Ø 27 mm. For slates, steel and corrugated sheets.
TT-6– with rubber sleeves.2 pipes max. Ø 27 mm. For clay and concrete.
The tube tile is supplied installed on a base plate shaped to match the roof profile 100%.
Easily installed with the rest of the roof and discreetly integrated in the roof surface
All Condron Roof Tiles are manufactured to comply with BS EN 490 and should be fitted in accordance with BS5534
Application
Tube Tile is developed specially for leading pipes safely through the roof surface e.g. from solar systems.
Please refer to national standards.
• For pitched roofs 15° – 45°
• Can be manufactured for any profile
Colour and Surface
Special coloured, glossy or structured with sand or granules the vents can be supplied with a 100% colour and surface match individually adjusted to each roofing material.
Materials
Tube Tile is manufactured from HIPS (High Impact Polystyrene).
Handling
Keep in the original packaging during transport.
Do not wrap and expose to heavy loads during transport.
Remove plastic bag before placing in sunlight.
