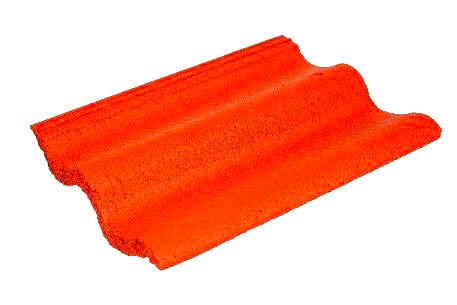

Pantile
Available Colours
Black, Anthracite, Grey, New Brown, Terracotta, Country Red
The Condron Pantile offers the beauty of a traditional tile profile combined with modern design and technical expertise.
Available in a choice of 6 distinctive Condron colours and suitable for roof pitches down to 17.5° .
All Condron Roof Tiles are manufactured to comply with BS EN 490 and should be fitted in accordance with BS5534
Fittings & Accessories Verge
Left hand verge tile
Dry verge – Condron Dry Verge system
Continuous dry verge system
Ridges
Half Round ridge
Universal Ornamental ridges
Hip
Half Round ridge
Universal Ornamental ridges
Valley
GRP dry fix
Ventilation
Dry ridge and hip systems
Over-fascia ventilation system
Tile ventilators
Fixings
Nails, tile, eaves and verge clips
Reference should be made to BS 5534:2014+A2:2018 and any new code of practices in the future. Condron Concrete Roof Tiles are manufactured in compliance with E.N. 490:2011+A1: 2017
Technical Data
Minimum roof pitch*
17.5° at 100 mm headlap*
22.5° at 75 mm headlap*
Minimum headlap
75 mm
Maximum gauge
345 mm
Overall length
420 mm
Overall width
330 mm
Cover width
300 mm
Coverage at maximum gauge
9.7 tiles/m2
Weight per 1000 tiles
5 tonnes
Laid weight at 345mm gauge
48.7 kg/m2
Pallet quantity
180
Batten sizes
38 x 25mm (rafter centres up to 450 mm)
50 x 25mm (rafter centres up to 600 mm)
Tile nails
50 × 3.35 mm aluminium clout head
Tile, eaves & verge clips
Stainless steel
