LV200 VENT TILE – PANTILE/DR TILE/FLAT TILE/SENIOR TILE
Design
The LV200 vent is designed especially for humid climates where requirements for ventilation are even more essential. Rain is diverted around the vent and a built in protective grille keeps out insects and drifting snow. The vent is supplied installed on a base plate shaped to fit the roof profile 100%. Easily installed with the rest of the roofing material and always following the roof pitch, the vent presents a nicely integrated solution.

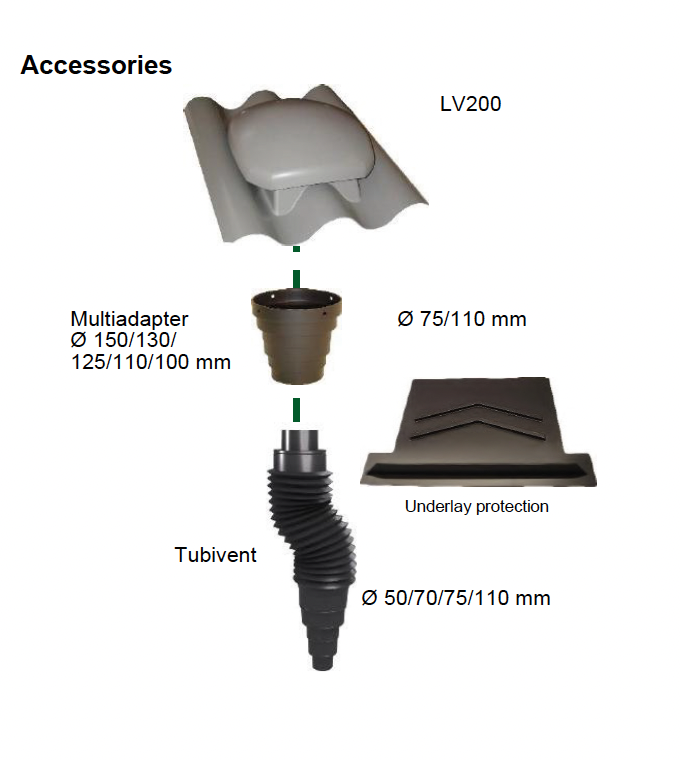

The Ø 160mm adapter allows for connection of Multiadapter and Tubivent.
All Condron Roof Tiles are manufactured to comply with BS EN 490 and should be fitted in accordance with BS5534
Application
The cowl vent LV200 is a discreet ventilation solution and ideal outlet for air from living quarters like kitchen, bathroom, tumbler, laundry room and as stack pipe. LV200 can also be used for mechanical ventilation.
Please refer to national standards.
• For pitched roofs 15° – 45°
• 20,000 mm2 ventilation area
• Can be manufactured for any profile
Colour and Surface
Special coloured, glossy or structured with sand or granules the vents can be supplied with a 100% colour and surface match individually adjusted to each roofing material.
Materials
Both the Vent and adapter are manufactured from HIPS (High Impact Polystyrene).
The Tubivent is manufactured from PE (Polypropylene).
Handling
Keep in the original packaging during transport.
Do not wrap and expose to heavy loads during transport.
Remove plastic bag before placing in sunlight.
