IV100 INLINE VENT – PANTILE/DR TILE
Design
The IV100 vent is designed to be as efficient and discreet as possible. It has a built in water stop concealed under the roof, which diverts rainwater safely back onto the roof surface. A protective grille keeps out insects and drifting snow. The vent is supplied installed in a base plate shaped to fit the roof profile 100%. Easily installed with the rest of the roofing material, the vent presents a very discreet ventilation solution.
All Condron Roof Tiles are manufactured to comply with BS EN 490 and should be fitted in accordance with BS5534
Application
The integrated vent IV100 is an absolutely discreet solution as outlet of air from living quarters like kitchen, bathroom, and laundry room or as stack pipe.
Please refer to national standards.
• For pitched roofs
• 10,000 mm2 ventilation area
• Can be manufactured for any profile
Note: Slate: min. 25° pitch Clay and concrete: min. 22.5° pitch but depending on profile.
Colour and Surface
Special coloured, glossy or structured with sand or granules the vents can be supplied with a 100% colour and surface match individually adjusted to each roofing material.

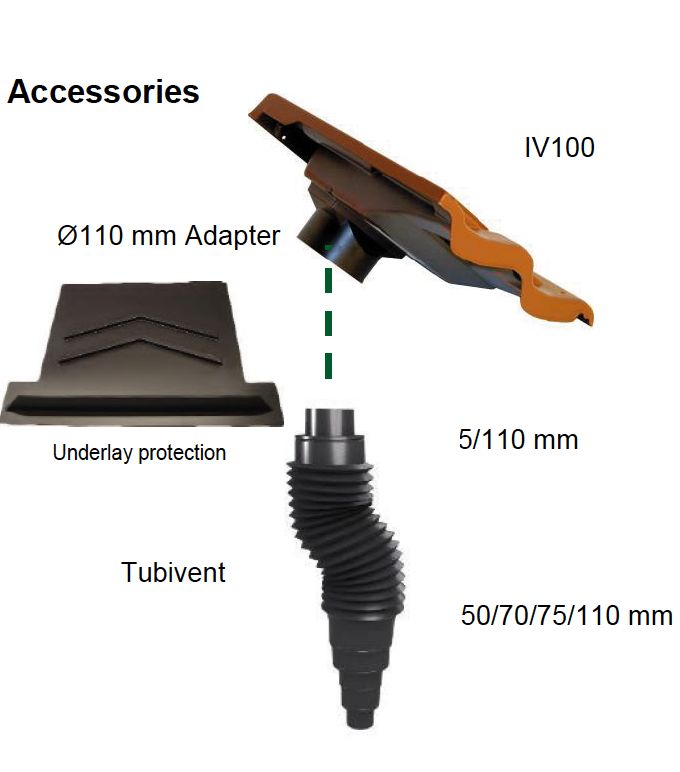

Materials
Both the Vent and adapter are manufactured from HIPS (High Impact Polystyrene).
The Tubivent is manufactured from PP (Polypropylene).
Handling
Keep in the original packaging during transport.
Do not wrap and expose to heavy loads during transport.
Remove plastic bag before placing in sunlight.
