LV75 VENT TILE – PANTILE/DR TILE
Design
The LV75 design diverts rainwater around the vent. It has a built-in protective grille to keep out insects and drifting snow.
The vent is supplied installed on a base plate shaped to fit the roof tile profile 100%. It is easily installed with the rest of the roofing material and always following the roof pitch, the vent presents a nicely integrated solution.

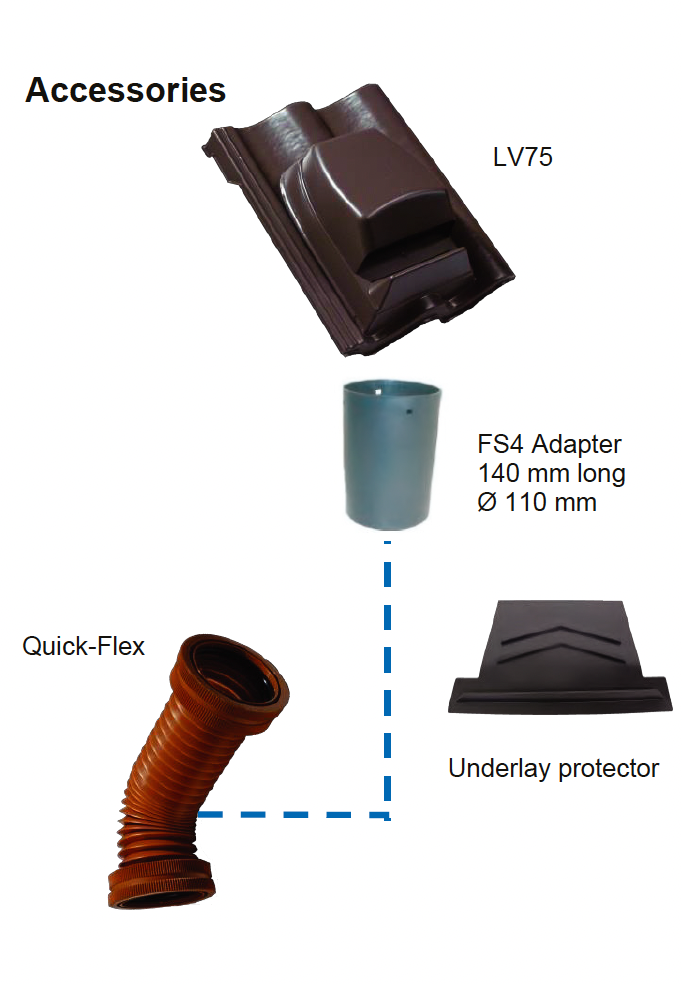

The FS4 adapter, supplied as a click-on addition, allows for connection of a Flexipipe and is fixed at the factory. The vent is supplied complete with an underlay protector to protect the opening in the roof underlay.
All Condron Roof Tiles are manufactured to comply with BS EN 490 and should be fitted in accordance with BS5534
Application
The LV75 cowl vent is a discreet ventilation solution and suitable as a ventilation outlet from rooms such as kitchens, bathrooms or a stack pipe.
Please refer to national standards.
• For pitched roofs 15° – 45°
• 7,500 mm2 ventilation area
• Can be manufactured for any profile
Colour and Surface
Special coloured, glossy or structured with sand or granules the vents can be supplied with a 100% colour and surface match individually adjusted to each roofing material.
Materials
Both the Vent and adapter are manufactured from HIPS (High Impact Polystyrene).
Handling
Keep in the original packaging during transport.
Do not wrap and expose to heavy loads during transport.
Remove plastic bag before placing in sunlight.
